PL-259 For 1/2″ Superflex

New, FSJ4-50B Andrew 1/2″ “Superflex” PL-259 (Male UHF) RF Heliax Coax Connector.  Replaces Andrew 44ASP.New FSJ4-50B Andrew 1/2" Superflex UHF Male (PL-259). Replaces Andrew 44ASP

This solderless, “no special tools required” UHF (PL-259) connector is used for:

50 Ohm Andrew FSJ4-50B 1/2″ Superflex Coax
50 Ohm CommScope FSJ4-50B 1/2″ HELIAX® Superflexible Coax
50 Ohm Commscope FSJ4-50 Sureflex Coax
50 Ohm TXM SPF-1/2 1/2″ Super Flexible Coax
50 Ohm HUBER+SUHNER Sucofeed 1/2-HF
50 Ohm RFS SCF12-50J 1/2″ CELLFLEX Superflexible
50 Ohm Andrew/CommScope FSJ4RK-50B
50 Ohm Hansen RF50 1/2″ “S” Coaxial Cable
Any FSJ4-50B or equivalent 1/2″ “Superflex” Coaxial Cable

Replaces obsolete Andrew 44ASP UHF Male (PL259) connector for FSJ4-50B “Superflex” cable (they DO NOT install on LDF4-50A “standard” 1/2″ Heliax cable).New FSJ4-50B Andrew 1/2" Superflex UHF Male (PL-259). Replaces Andrew 44ASP

Detailed assembly instructions (with illustrations) included in shipping packet. Simple installation, no soldering or special tools required.

Over the last two+ years we’ve tested these in high power applications without a single failure.  We like them much, much better than the old Andrew 44ASP UHF Male connectors, and we like them better than any Type N Male connectors as UHF (PL259) have much more center pin contact area for high power UHF applications.

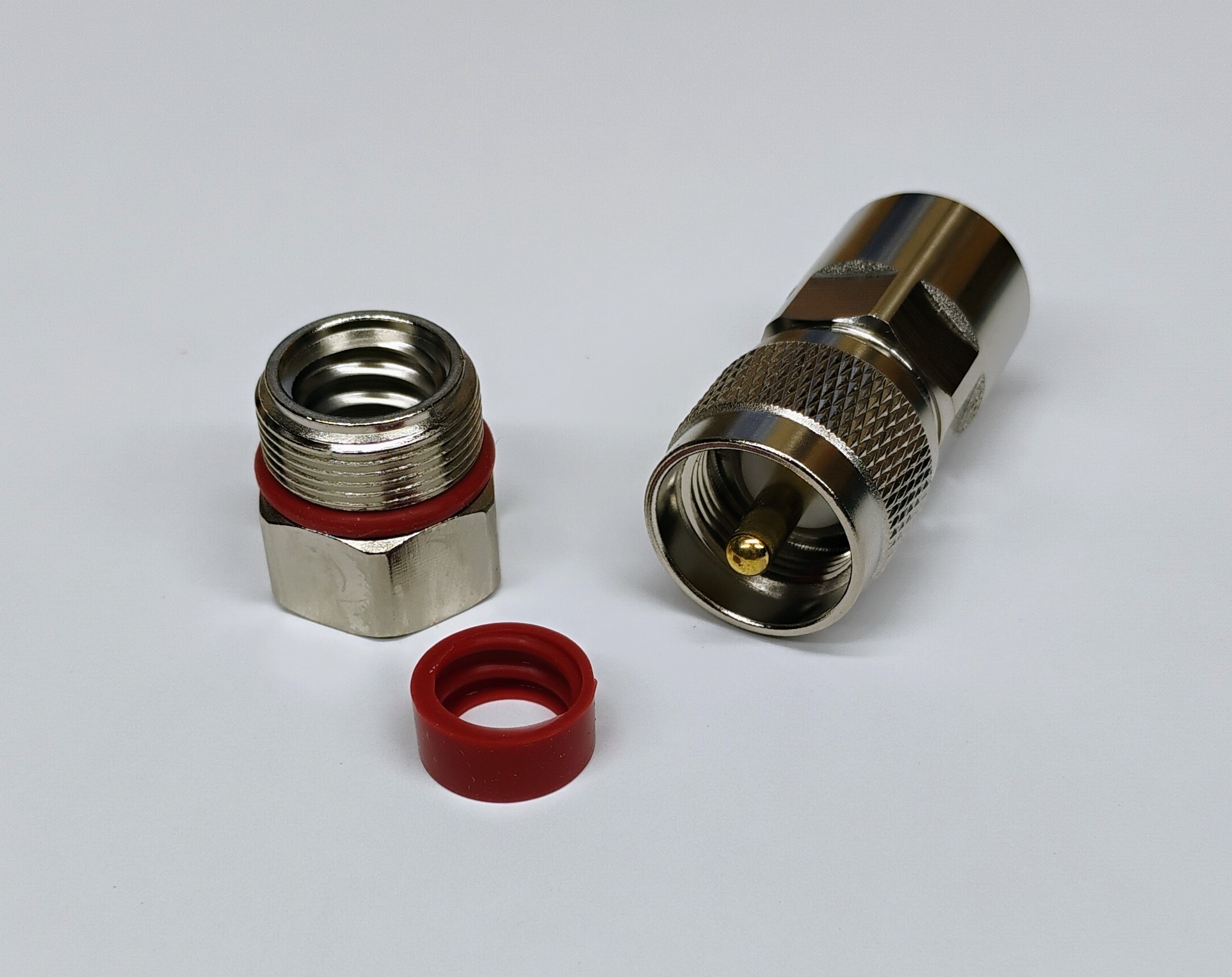

The FSJ4-50B Superflex (or equivalent) center conductor inserts into one way locking tabs in the center nose pin of the PL259, the outer nut securely tightens onto the the threaded spiral corrugated copper shield.

Pricing and Ordering

Add The Ham Supply PL-259 For 1/2" Superflex To Your Shopping CartPL-259 For 1/2″ Superflex:  $14.95  $11.95
